Understanding Hydrazine’s Molecular Structure
Hydrazine (H2NNH2) is a colorless liquid with a pungent odor that plays a vital role in various industrial and scientific applications. Its molecular structure, represented by its Lewis structure, provides insights into its chemical properties and behavior.
Prerequisites
To fully comprehend the Lewis structure of H2NNH2, a basic understanding of Lewis dot structures is necessary. Lewis dot structures are simple representations of molecules that depict the distribution of electrons in their outer shells. Each element’s symbol is surrounded by dots, representing its valence electrons.
Step-by-Step Approach to Drawing H2NNH2‘s Lewis Structure
Follow these steps to draw the Lewis structure of H2NNH2:
-
Determine the total number of valence electrons: Nitrogen (N) has 5 valence electrons, and hydrogen (H) has 1 valence electron. Thus, H2NNH2 has a total of 4(5) + 4(1) = 24 valence electrons.
-
Connect the atoms: Connect the two nitrogen atoms with a single bond, using 2 valence electrons. Then, connect each nitrogen atom to two hydrogen atoms using single bonds, utilizing an additional 8 valence electrons.
-
Distribute the remaining electrons: Place the remaining 14 valence electrons as lone pairs around the nitrogen atoms, ensuring that each nitrogen atom has two lone pairs.
-
Verify the octet rule: Each nitrogen atom now has 8 valence electrons, satisfying the octet rule. Each hydrogen atom has 2 valence electrons, completing its duet.

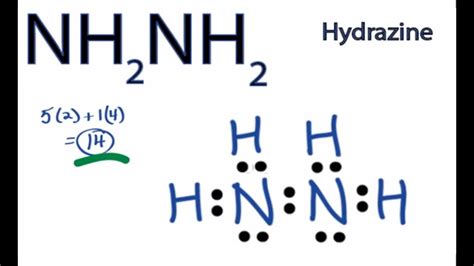

Lewis Structure of H2NNH2
The Lewis structure of H2NNH2 resembles a distorted tetrahedron, with two lone pairs on each nitrogen atom. The single bonds between nitrogen and hydrogen form an angle of approximately 107 degrees.
Hydrogen Bonding in H2NNH2
H2NNH2 possesses strong intermolecular hydrogen bonding due to the presence of lone pairs on the nitrogen atoms and the electronegativity of nitrogen. This hydrogen bonding contributes to its relatively high boiling point of 113.5 °C.
Applications of Hydrazine
Hydrazine has numerous industrial and scientific applications, including:
- Rocket fuel: Hydrazine is a potent rocket fuel due to its high energy content and ability to decompose spontaneously, releasing a large amount of energy.
- Boiler feedwater treatment: Hydrazine acts as an oxygen scavenger in boiler feedwater systems, preventing corrosion caused by dissolved oxygen.
- Pharmaceuticals: Hydrazine derivatives are used as antitubercular and antifungal agents.
- Polymer synthesis: Hydrazine is employed as a reducing agent in the synthesis of certain polymers.
- Laboratory reagent: Hydrazine is a versatile reducing agent commonly used in laboratory reactions.
Toxicity and Safety Precautions
Hydrazine is a hazardous substance with various toxic effects, including:
- Acute poisoning: Inhalation of hydrazine vapor can cause severe respiratory distress and even death.
- Skin irritation: Skin contact with hydrazine can result in burns and blistering.
- Carcinogenic effects: Hydrazine has been classified as a probable human carcinogen by the International Agency for Research on Cancer (IARC).
Adequate safety measures, such as proper ventilation, respiratory protection, and protective clothing, must be strictly observed when working with hydrazine.
Conclusion
The Lewis structure of H2NNH2 provides a fundamental understanding of its molecular structure and properties. Its strong hydrogen bonding explains its high boiling point, while its presence of lone pairs and the electronegativity of nitrogen contribute to its involvement in various applications. However, it is crucial to recognize the toxic nature of hydrazine and adhere to strict safety guidelines when handling it.
