Introduction
The Gameboy Advance SP, released in 2003, is a beloved handheld gaming console known for its clamshell design and vibrant backlit LCD screen. However, over time, wear and tear can damage the LCD, leading to issues with clarity, ghosting, or even complete failure. Replacing the LCD is a relatively straightforward process that can restore your Gameboy Advance SP to its former glory.
Why Replace the LCD on Your Gameboy Advance SP?
- Improved Visual Quality: A new LCD will provide sharper colors, better contrast, and reduced ghosting, enhancing your gaming experience.
- Extended Lifespan: Replacing a damaged LCD can prevent further damage and extend the lifespan of your Gameboy Advance SP.
- Increased Value: A console with a new LCD is more valuable to collectors or future buyers.
Step-by-Step Guide to Replacing the LCD
Tools Required:

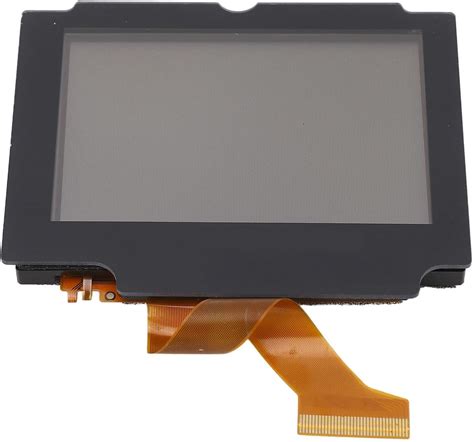

- Gameboy Advance SP Replacement LCD Screen
- Phillips #00 Screwdriver
- Tri-Wing Screwdriver
- Spudger (optional)
Instructions:

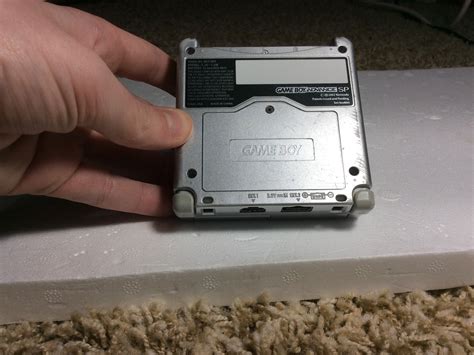

- Power Off and Disassemble: Turn off your Gameboy Advance SP and remove the battery cover. Unscrew the two screws on the bottom of the console using the Tri-Wing screwdriver. Remove the backplate.
- Disconnect the Ribbon Cable: Locate the ribbon cable connecting the LCD to the motherboard. Gently lift the brown tab on the connector and pull the cable straight out.
- Remove the LCD Screws: Unscrew the four Phillips screws holding the LCD in place.
- Lift the LCD: Carefully lift the LCD away from the motherboard. Be cautious not to damage the surrounding components.
- Install the New LCD: Align the new LCD with the motherboard and press down gently to secure it.
- Screw in the LCD: Replace the four Phillips screws to hold the LCD in place.
- Reconnect the Ribbon Cable: Connect the ribbon cable to the motherboard by aligning it and pressing down on the brown tab.
- Reassemble the Console: Reverse the disassembly process to reassemble the Gameboy Advance SP.
Troubleshooting
- Blank Screen: Ensure the ribbon cable is securely connected.
- Dim Screen: Check if the brightness setting is adjusted properly.
- Flickering Screen: Contact Nintendo or a professional repair service.
LCD Screen Options
- Original OEM: Genuine LCD screen manufactured by Nintendo, offering the most authentic experience.
- Aftermarket Replacement: Non-OEM LCD screens that may vary in quality and performance.
- IPS LCD: High-quality replacement screen with improved viewing angles, color accuracy, and reduced input lag.
Table 1: LCD Screen Options and Features
| Type | Pros | Cons |
|---|---|---|
| Original OEM | Authentic experience, reliable | Expensive, not always easy to find |
| Aftermarket Replacement | Affordable, widely available | May vary in quality, shorter lifespan |
| IPS LCD | Superior image quality, reduced input lag | More expensive, may require additional modifications |
Choosing the Right LCD Screen
Considerations:
- Compatibility: Ensure the LCD screen is compatible with your Gameboy Advance SP model.
- Quality: Choose a screen with high-quality components and a reliable warranty.
- Budget: Determine your budget for the replacement and compare prices from different suppliers.
Cost of LCD Replacement
The cost of replacing the LCD screen on your Gameboy Advance SP will vary depending on the type of screen you choose and the labor involved.
- Original OEM: $50-$70
- Aftermarket Replacement: $20-$40
- IPS LCD: $60-$90
- Labor: May be additional, depending on the repair service used
Table 2: LCD Replacement Cost Estimates
| Type | Cost |
|---|---|
| Original OEM + Labor | $70-$90 |
| Aftermarket Replacement + Labor | $40-$60 |
| IPS LCD + Labor | $80-$110 |
Benefits of Replacing the LCD Screen
- Enhanced gaming experience with improved visuals
- Increased value of your Gameboy Advance SP
- Preserved functionality and extended lifespan
Table 3: Benefits of LCD Replacement
| Benefit | Description |
|---|---|
| Visual Quality | Brighter colors, sharper contrast, reduced ghosting |
| Value | Console becomes more valuable for collectors and buyers |
| Functionality | Prevents further damage and extends lifespan |
Conclusion
Replacing the LCD screen on your Gameboy Advance SP is a cost-effective solution to restore the console’s vibrant display and extend its lifespan. By following the step-by-step instructions and choosing a high-quality replacement screen, you can enhance your gaming experience and preserve the value of your beloved handheld device.
