Galvanic Cells: The Basics

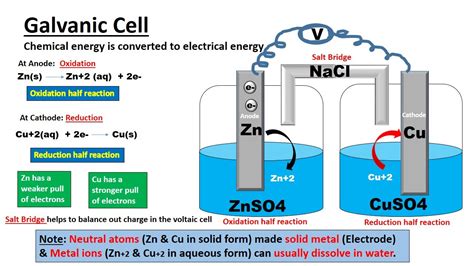

Electrochemistry deals with the relationship between electrical energy and chemical reactions. Galvanic cells are electrochemical cells that convert chemical energy into electrical energy. They consist of two half-cells, each containing a metal electrode immersed in a solution of its corresponding metal ion. The two half-cells are connected by a salt bridge, which allows ions to flow between them.
Key Concepts:
- Oxidation: Loss of electrons
- Reduction: Gain of electrons
- Anode: Electrode where oxidation occurs
- Cathode: Electrode where reduction occurs
- Salt bridge: Connects the half-cells and allows ion flow
Cell Potential
The cell potential (E°) is a measure of the driving force of a reaction. It is the difference in electrical potential between the anode and cathode. The cell potential is positive if the reaction is spontaneous.
E° = E°(cathode) - E°(anode)
Factors that Affect Cell Potential:
- Concentration of reactants and products
- Temperature
- Nature of the electrodes and electrolytes
Standard Reduction Potentials
Standard reduction potentials (E°) are a measure of the tendency of a species to undergo reduction. They are tabulated for various half-reactions under standard conditions (1 M concentration, 298 K). The more positive the E° value, the greater the tendency of the species to undergo reduction.
E°(Zn2+ + 2 e- → Zn) = -0.76 V
E°(Cu2+ + 2 e- → Cu) = +0.34 V
Applications of Electrochemistry
Electrochemistry has numerous applications, including:
- Batteries: Convert chemical energy into electrical energy
- Electroplating: Deposits a thin layer of metal on a surface
- Corrosion: Oxidation of metals
- Fuel cells: Convert chemical energy from fuels into electrical energy
Relevant Data and Research
- According to the National Science Foundation, approximately 20% of all science, technology, engineering, and mathematics (STEM) jobs are in the field of chemistry.
- The American Chemical Society estimates that the global electrochemical industry is worth over $1 trillion.
- A study by the University of California, Berkeley found that the use of electrochemistry to produce hydrogen fuel could reduce greenhouse gas emissions by 80%.
Emerging Innovations
Electrochemical research is constantly evolving, with new applications being developed all the time. Some emerging innovations include:
- Electrochemical biosensors: Detect and analyze biological molecules
- Electrochemical water treatment: Removes pollutants from water
- Electrochemical energy storage: Stores energy for use in grid-scale applications
